Product Overview
Overview:
The FortiAP-U family offers a wide range of models with the additional flexibility of dual 5 GHz support for WiFi 6 APs. Perfect for everything from a large campus to hundreds of branch locations the FortiAP-U family has a variety of form factors and performance levels. FortiAP-U access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance, through the FortiAP Cloud provisioning and management portal, or through standalone controllers (FortiWLC). Protect your LAN Edge from the campus to the branch with these high capacity capable APs.
Universal Access Management
Ability to intelligently support standalone controllers (FortiWLC), integrated security controllers (FortiGate), and cloud management options; and establish a new benchmark in flexibility, performance, and security.
Latest Wi-Fi technologies
Wi-Fi 6 technology with data rates of up to 4.8 Gbps and OFDMA improves client throughput and overall network efficiency.
Unmatched Security Protection
Integrates with Fortinet’s Security Fabric, providing unparalleled cybersecurity protection at the network edge.
Specifications:

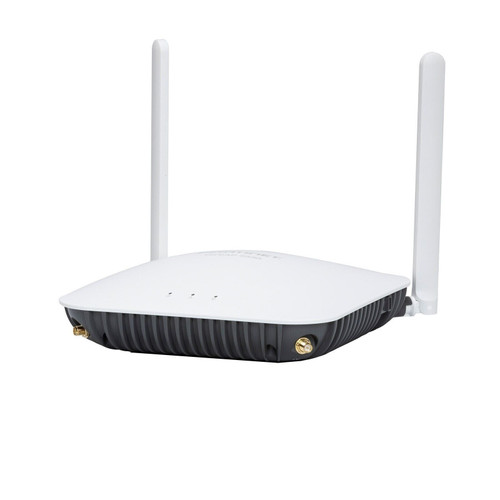

| FortiAP U433F | ||
|---|---|---|
| Hardware | ||
| Hardware Type | Indoor AP | |
| Number of Radios | 3 + 1 BT/BLE | |
| Number of Antennas | 4 Dual band WiFI + 2 WiFi+Dual band Scanning + 1 Single band 2.4GHz BLE/ZigBee | |
| Antenna Type and Peak Gain | PIFA antenna Dual band: 3.97 dBi for 2.4GHz and 5.89 dBi for 5GHz Single band 5Ghz antenna 5dBi for 2.4GHz band BLE antenna 3.5dBi at 2.4GHz band |
|
| Frequency Bands (GHz) | ||
| Radio 1 Capabilities | Band: 2.4 GHz or 5.0 GHz(High Band) a/b/g/n/ac/ax (2x2:2 stream) Channel width: 20/40/80MHz Modulation: BPSK, QPSK, 64/256/1024 QAM |
|
| Radio 2 Capabilities | 5.0 GHz a/b/g/n/ac/ax (2x2:2 stream) Channel width: 20/40/80MHz Modulation: BPSK, QPSK, 64/256/1024QAM |
|
| Radio 3 Capabilities | Service: (2x2:2 stream) Band: 2.4 GHz service b/g/n/ax Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024QAM Scan: dual band scan |
|
| Maximum Data Rate | Radio 1: up to 1201 Mbps Radio 2: up to 1201 Mbps Radio 3: up to 574 Mbps |
|
| Bluetooth Low Energy (BT/BLE) Radio | Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power | |
| Interfaces | 2x 10/100/1000 Base-T RJ45, 1x Type 2.0 USB, 1x RS-232 RJ45 Serial Port | |
| Power over Ethernet (PoE) | 1 x 802.3at PoE default 1 x 802.af PoE with reduce TX power and no USB function | |
| Simultaneous SSIDs | Up to 24 (21 if background scanning enabled) | |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST | |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist | |
| Maximum Tx Power | Radio 1: 2.4GHz: 23 dBm / 200 mW (2 chains combined) 5GHz: 22 dBm / 158 mW (2 chains combined) Radio 2: 5GHz: 22 dBm / 158 mW (2 chains combined) Radio 3: 2.4GHz: 23 dBm / 200 mW (2 chains combined) 5GHz: 22 dBm / 158 mW (2 chains combined) |
|
| Kensington Lock | Yes | |
| IEEE Standards | 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az | |
| SSID Types Supported | Local-Bridge, Tunnel, and Mesh | |
| Per Radio Client Capacity | Up to 512 clients per radio (all radios) | |
| Cellular Co-existence | Yes | |
| Reset Button | Yes | |
| LED Off Mode | Yes | |
| Advanced 802.11 Features | ||
| Transmit Beam Forming (TxBF) | Yes | |
| Low-Density Parity Check (LDPC) Encoding | Yes | |
| Maximum Likelihood Demodulation (MLD) | Yes | |
| Maximum Ratio Combining (MRC) | Yes | |
| A-MPDU and A-MSDU Packet Aggregation | Yes | |
| OFMDA | Yes | |
| 2.4 GHz OFDMA | Yes | |
| Spatial Reuse (BSS Coloring) | Yes | |
| HE-MU-MIMO | Yes | |
| UL MU-MIMO 802.11ax mode | Yes | |
| UL MU-MIMO 802.11ac mode | Yes | |
| DL-MU-MIMO | Yes | |
| Enhanced Target Wake Time (TWT) | Yes | |
| ZeroWait DFS /Agile DFS | Yes | |
| Wireless Monitoring Capabilities | ||
| Rogue Scan Radio Modes | Background, Dedicated | |
| WIPS / WIDS Radio Modes | Background, Dedicated (recommended) | |
| Packet Sniffer Mode | Yes | |
| Spectrum Analyzer | Yes | |
| Dimensions | ||
| Length x Width x Height | 6.5 x 6.5 x 2.05 inches (165 x 165 x 52 mm) | |
| Weight | 1.5 lbs (0.68 kg) | |
| Package (shipping) Weight | 2.6 lbs (1.185 kg) | |
| Mounting Options | Ceiling, T-Rail and Wall | |
| Included Accessories | Standard Mount kit for Ceiling, T-Rail and Wall | |
| Environment | ||
| Power Supply | GPI-130 or SP-FAP250-PA-10 | |
| Power Consumption (Maximum) | 18.5 W | |
| Humidity | 5 - 90% non condensing | |
| Operating / Storage Temperature | 32–122°F (0 - 50°C) / -22–158°F (-30–70°C) | |
| Directives | Low Voltage Directive • RoHS | |
| UL2043 Plenum Material | Yes | |
| Mean Time Between Failures | >10 Years | |
| IP Rating | N/A | |
| Surge Protection Built In | -- | |
| Hit-less PoE Failover | N/A | |
| Certifications | ||
| Wi-Fi Alliance Certified | Yes | |
| DFS | FCC, IC, CE, Japan, Taiwan, Korea, Brazil | |
| Warranty | ||
| Limited Lifetime Warranty | Yes | |
